If your system uses a TVMS Rogue (TVMS1240) or TVMS Prime (TVMS1280), you’ll need to configure how information is shown on the RedVision Pro Display. This includes setting user preferences, soft keys, and home/status screen layouts.
Each display can be customised with unique soft keys, layouts, and module names for easier identification. With a TVMS Rogue, you also get additional control options (Toggle, Dimmer, Timer, Bell Press) for outputs, and can group channels.
The home screen can be tailored to show battery, inverter, voltage, and tank information depending on your setup. Optional status screens can also be added to display system overviews, tank levels, or inverter outputs.
The following configuration is not applicable if you have a BCDC Alpha R, Manager30 or Manager Alpha without a TVMS installed.
REDARC recommends seeking the support of a qualified auto electrician or technician.
Important
For your safety, REDARC recommends installation by a qualified technician. Seek support from a REDARC recommended dealer or installer - Find Your Local Installer
This information is applicable to the following products:
- TVMS Rogue (TVMS1240)
- TVMS Prime (TVMS1280)
If your system includes a TVMS Rogue (TVMS1240) or TVMS Prime (TVMS1280), there are some additional options that need to be configured to define how system information will be displayed on the RedVision Pro Display.
Note: The following steps are not applicable if you have a BCDC Alpha R, Manager30 or Manager Alpha without a TVMS installed.
IMPORTANT: ENSURE YOUR REDVISION PRO DISPLAY IS CONNECTED TO YOUR DEVICE
Before you can configure your RedVision Pro Display, you will need to connect your device (smartphone or tablet) via the RedVision Configurator App to the REDARC RedVision system.
View this article: How to connect the RedVision Configuration App to your RedVision System
Configure RedVision Pro Display User Preferences
Soft key configuration

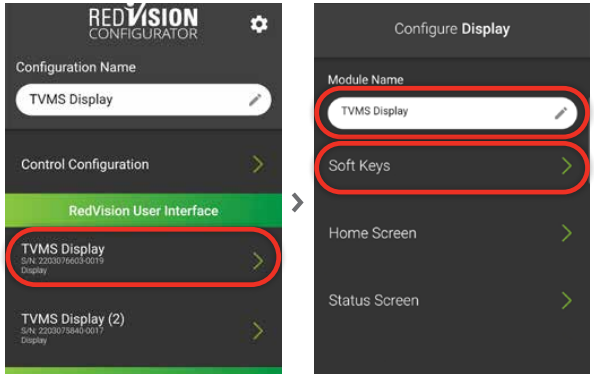

Under RedVision User Interface, tap TVMS Display.
Each display connected to the system will be listed under RedVision User Interface.
If multiple RedVision Pro Displays are installed, you can program different Soft Keys and home screen and status screen layouts.
Add a Module Name for each Display for easier identification (e.g. ‘Front’ or ‘Back’, ‘Inside’ or ‘Outside’).
Tap Soft Keys.

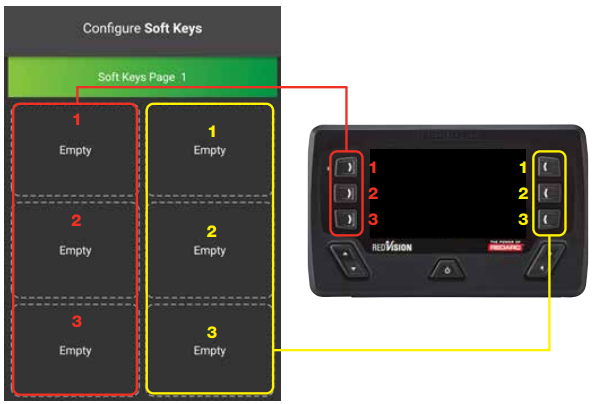

The layout of the Soft Keys Page 1 corresponds to the locations of the Soft Keys on the RedVision Pro Display and RedVision User App.
If you are selecting an Output from a TVMS Prime Output Channel, the chosen Output Channel will fill the Empty Soft Key you selected, however, if you have a TVMS Rogue, you will have more options for the control type (see below).

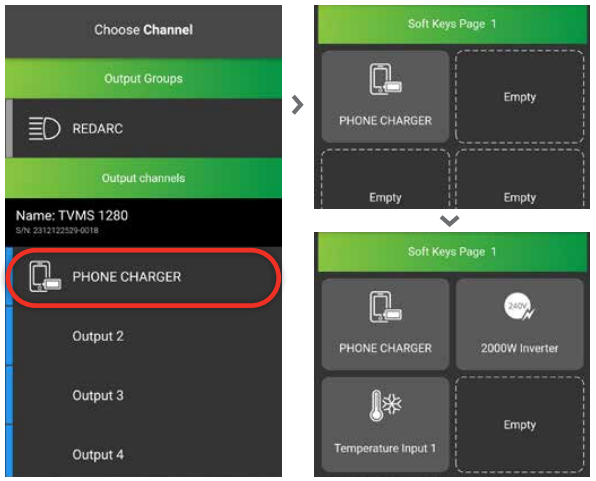

Tap one of the Empty Soft Keys.
Select an Output Group or Output Channel.
Output Groups will only appear if a TVMS Rogue is installed and if you have configured groups.
| TVMS ROGUE ONLY - SETTING CONTROL TYPE |
|

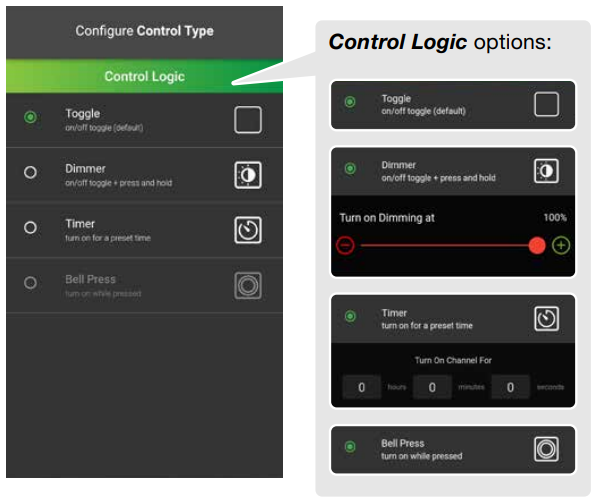

Under Control Logic, set your Control Type. Setting Info Toggle: Is the default, on/off operation. Dimmer: Allows for toggling on/off and press and hold for dimming. Suitable for dimmable LED circuits. Set the percentage of dimming for when the LED is switched on, adjustable from 0–100%. Timer: Allows for the channel to be switched on for a specific time. The channel can be set to remain on for up to 23 hours, 59 minutes and 59 seconds. Bell Press: Allows the channel to be active when the switch is held down. Tap Save. |
Adding more than 6 Channels
If you have more than 6 Channels, tap + Add Soft Keys to add a new page.
Tap Save.
Repeat this process for the remaining Soft Keys.
Choosing a home screen layout

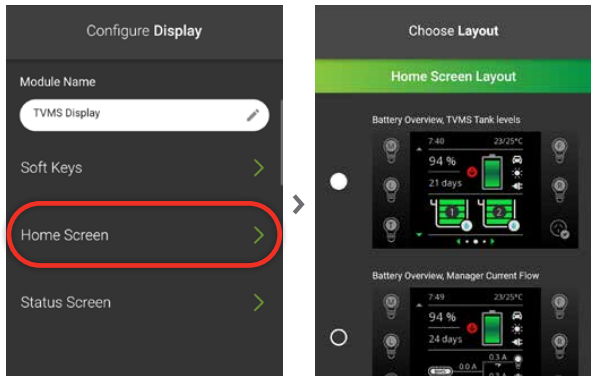

Tap Home Screen.
Set a Home Screen Layout that best suits your system.
The Home Screen layout you select will be applied your RedVision Pro Display when you program it, and will also appear in the RedVision User App.
If prompted, configure your selected Layout.
Note: If any of these are not connected or you don’t want to display the information, leave as None.
Tap Save.
Home screen layout options
NOTE: Home screen layout options with inverter information are only compatible when using REDARC RS3 Inverters with comms connected to the TVMS Prime.

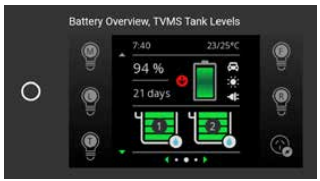

Battery Overview, TVMS Tank Levels: Displays battery information including state of charge percentage and tank levels. Once selected, you will be prompted to select the temperature readout and TVMS tank level options. (TVMS Rogue and TVMS Prime).

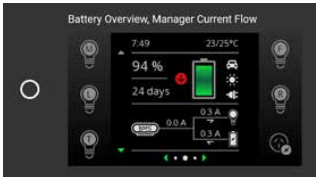

Battery Overview, Manager Current Flow: Displays battery information including state of charge percentage and manager current flow information. Once selected, you will be prompted to select the temperature readout. (TVMS Rogue & TVMS Prime).

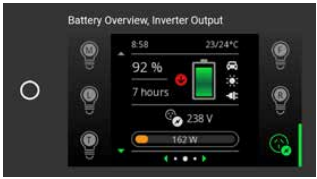

Battery Overview, Inverter Output: Displays battery information including state of charge percentage and inverter output voltage and wattage. Once selected, you will be prompted to select the temperature readout and inverter readout. (TVMS Rogue, TVMS Prime and RS3 Inverter).

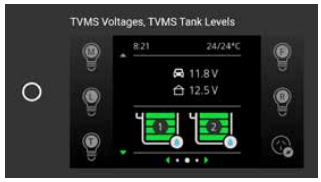

TVMS Voltages, TVMS Tank Levels: Displays voltages and tank levels. Once selected, you will be prompted to select the temperature readout, TVMS tank levels and voltage channels. (TVMS Rogue and TVMS Prime).

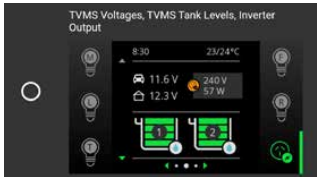

TVMS Voltages, TVMS Tank Levels, Inverter Output: Displays voltages, tank levels and inverter output voltage and wattage. Once selected, you will be prompted to select the temperature readout, inverter readout, TVMS tank levels and voltage channels. (TVMS Rogue, TVMS Prime and RS3 Inverter).

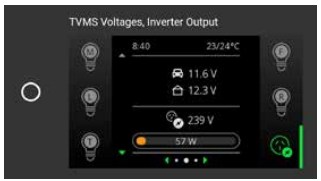

TVMS Voltages, Inverter Output: Displays voltages and inverter output voltage and wattage. Once selected, you will be prompted to select the temperature readout and inverter readout. (TVMS Rogue, TVMS Prime and RS3 Inverter)

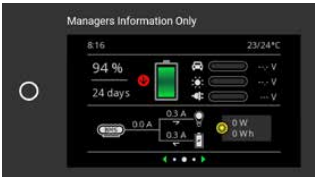

Managers Information Only: Displays battery information including state of charge percentage, manager current flow information, input status and solar input. Once selected, there are no configuration options for this home screen. (Manager30 and Manager Alpha
Add a Status Screen
With a TVMS Rogue or TVMS Prime installed, optional status screens can be added and accessed through the RedVision Pro Display or RedVision User App.
| TVMS ROGUE & TVMS PRIME ONLY - SETTING STATUS SCREEN |
|

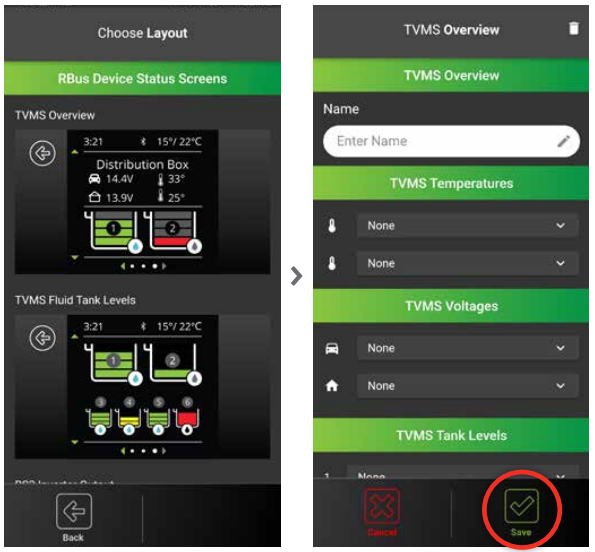

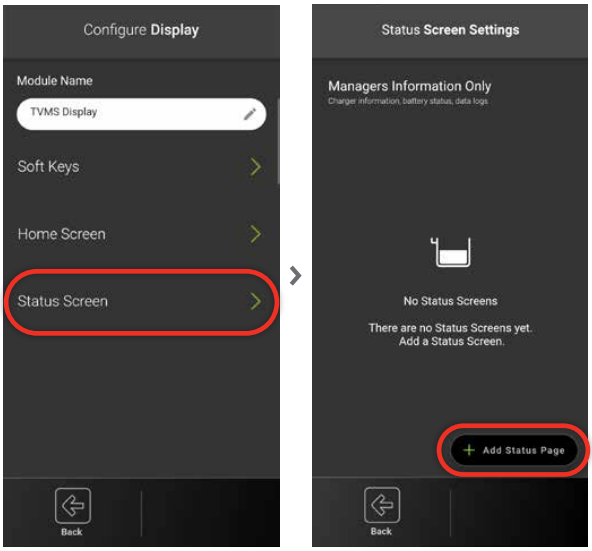

Tap Status Screen. The Status Screen Settings page allows configuration of the RedVision Pro Display Status Screens. Once the system has been configured, status screens are accessed by pushing the Right arrow on the RedVision Pro Display, or by swiping when using the RedVision User App. There are multiple status screens layouts which can be added to your RedVision Pro Display Menu. Tap + Add Status Page to add a Status Page. Select one or more RBus Device Status Screen layouts to add them to your RedVision Pro Display and RedVision User App menu. The screen layout options are TVMS Overview, TVMS Fluid Tank Levels and RS3 Inverter Output. Depending on the screen layouts selected, the next screen will give you specific display options for the chosen layout. Name the screen layout and select the information you want displayed. The tank status screen allows you to display two rows of tank levels, up to four on each row. Note: If you only select two on a row, the icons will appear larger than if three or four are selected. For Status Screen options you don’t want to display on the status screen, leave as None. Tap Save. |
